wfngrid

HPC3 is High Performance Computing System 3. On 1 July 2025, the roles, services and technologies of New Zealand eScience Infrastructure (NeSI) were integrated into the crown-owned company, Research and Education Advanced Network New Zealand (REANNZ). The REANNZ logo appears on some output screens. NeSI is the system that implements access and running jobs on HPC3.

Prerequisites

You will need to have installed WFN on a Windows computer. WFN is a command line tool for using NONMEM.

Wings for NONMEM (WFN) has links to the New Zealand eScience Infrastructure (NeSI) system high performance computing resources (HPC3). When using WFN this is primarily used to run NONMEM jobs using parallel processing on multiple CPUs (‘nodes’) on HPC3.

The link between WFN running on a Windows computer and HPC3 is managed by the Remote Job Management (RJM) system. RJM is a set of tools created by NeSI most recently maintained by Chris Scott. The RJM tools have been primarily implemented to work with WFN. In order to use the RJM system you will need to run rjm_configure.

IMPORTANT
NeSI HPC3 is only accessible by applying for an account and registration of individual users.

Apply for access with https://www.nesi.org.nz/researchers/apply-access-our-services before trying to run rjm-configure. This only needs to be done once for each user.

rjm-configure needs to be run on each computer you plan to connect to HPC3. rjm-configure is located in the wfn7\bin directory. You can run it by opening a WFN window and typing

rjm_configure

You will be prompted to provide a NeSI user name (used to apply for access to NeSI) and a NeSI project name (uoa00106 for Auckland Pharmacometrics Group users). rjm-configure will suggest a directory name for storing NONMEM related files on HPC3. You should accept the suggested name.

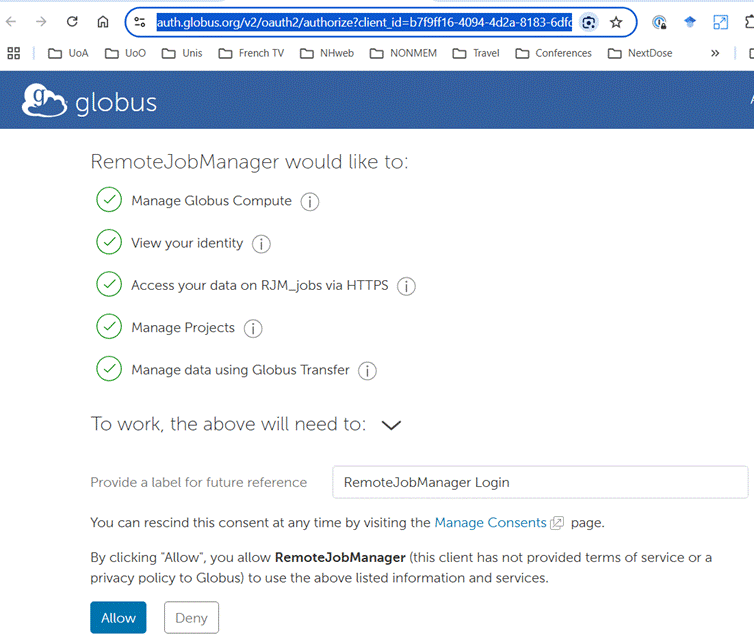

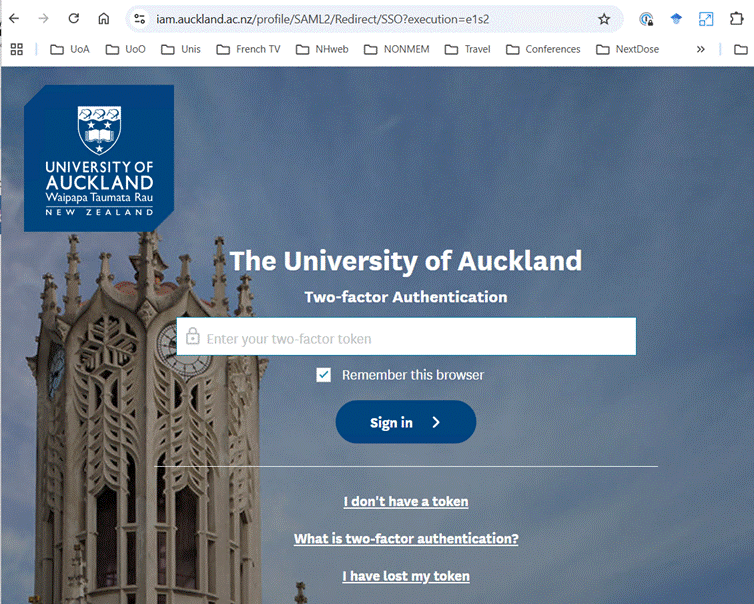

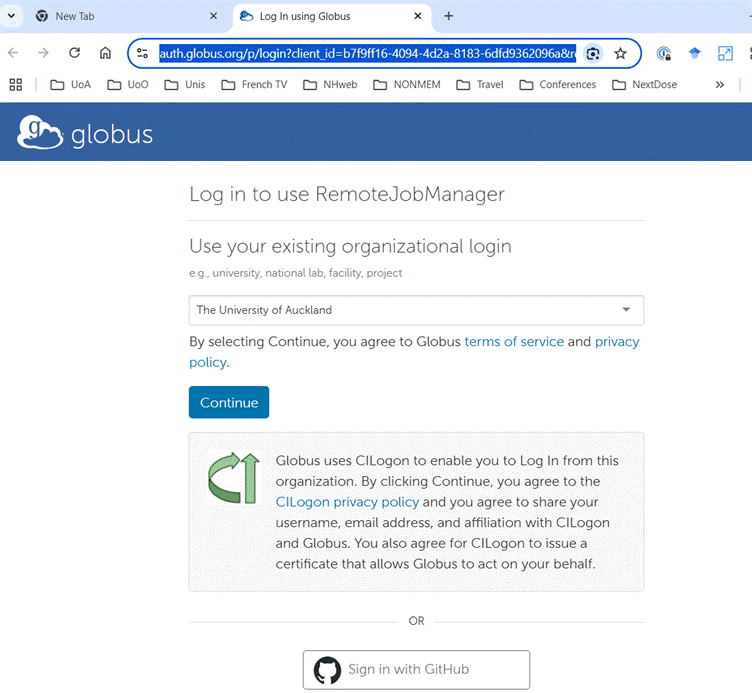

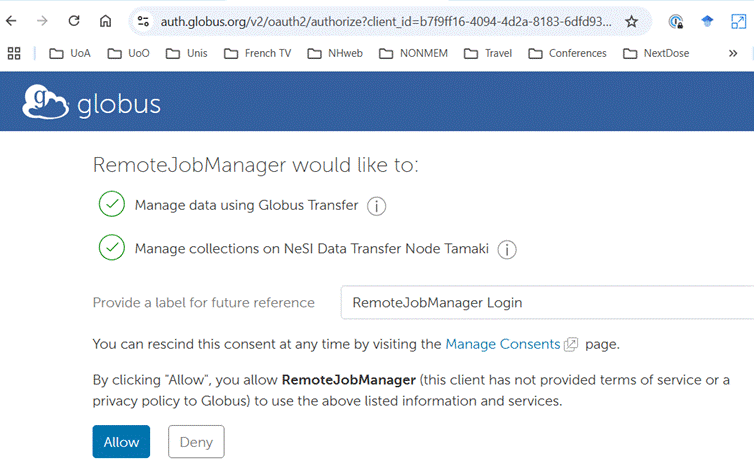

During the process of configuration you will be prompted to provide credentials for access to NeSI. The images below show examples. You should accept the defaults.

A screenshot of a web page

AI-generated content may be incorrect.

A screenshot of a computer

AI-generated content may be incorrect.

Once you complete rjm-configure you can start using WFN to submit NONMEM jobs to HPC3.

Managing Files on HPC3 and Checking on HPC3 job progress

Using NeSI ondemand to Access your NeSI home directory

Open NeSI ondemand

1. https://ondemand.nesi.org.nz/public/

2. Click on Login (you may be prompted to show a 2 factor authentication code shown on Google Authenticator).

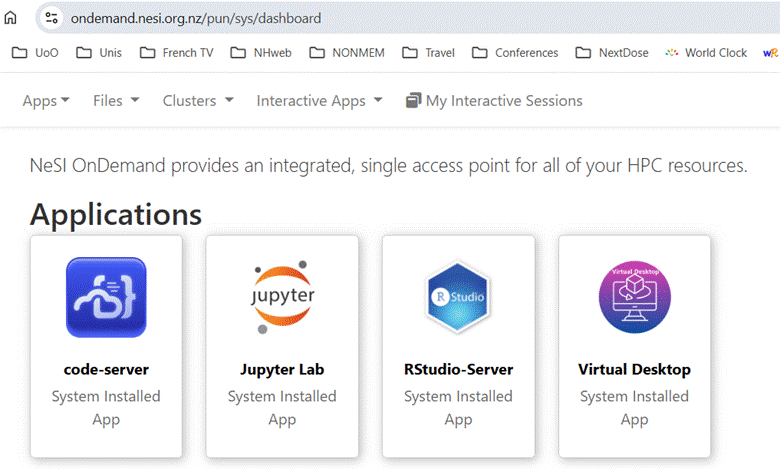

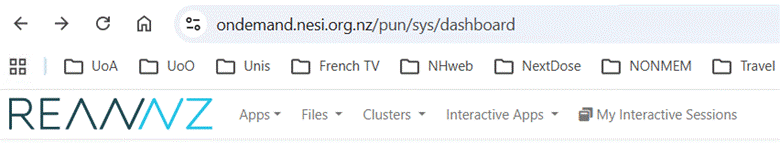

3. The ondemand system opens in the Dashboard page with the following options:

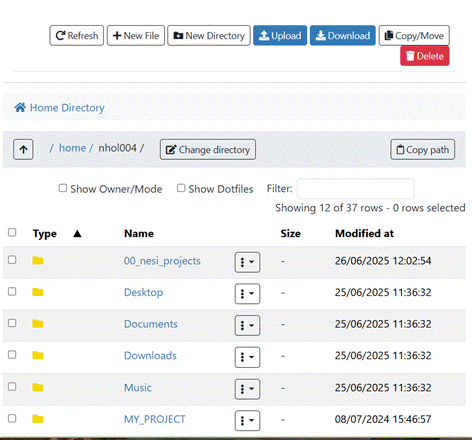

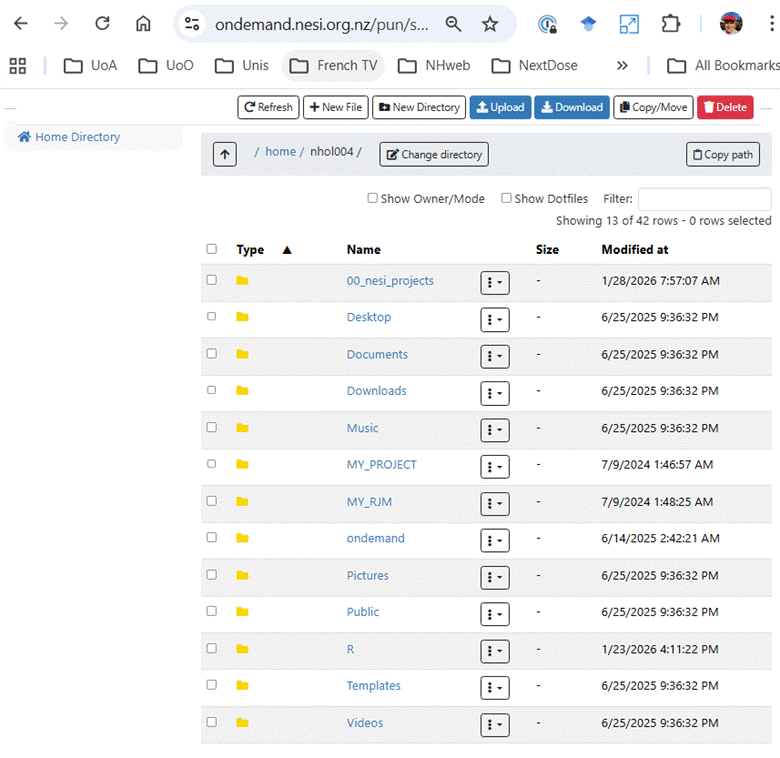

4. Open a File manager window by clicking on Files then Home Directory so you can see the directories and files stored in your NeSI home directory.

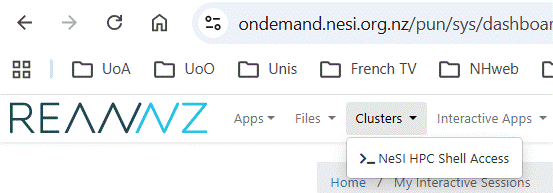

5. Return to the dashBoard page (back-arrow). Open an HPC3 NeSI terminal window by clicking on Clusters then _NeSI HPC Shell Access

Or use this link:

https://ondemand.nesi.org.nz/pun/sys/shell/ssh/login.hpc.nesi.org.nz

This terminal window gives you command line access to your files stored on the HPC3 system and access to the slurm operating system commands.

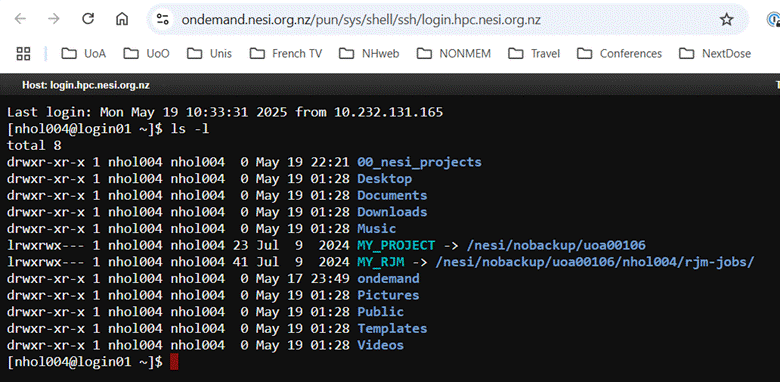

Ask for a long directory listing by typing the command ls -l

Setting Up Symbolic Links

This is my NeSI home directory. There are two symbolic links MY_PROJECT and MY_RJM that provide a simple way to access the uoa00106 project directory and your personal set of rjm-job files. It is recommended to create these links by copying and pasting the following commands into the terminal window. Be sure to change nesiname to your NeSI user name

ln -s /NeSI/nobackup/uoa00106 ~/MY_PROJECT

ln -s /NeSI/nobackup/uoa00106/neSiname/rjm-jobs/ ~/MY_RJM

The ~ before the symbolic link name refers to your NeSI home directory. This is the location where the symbolic link will be created.

Using Slurm To Show The Status Of Running Jobs

Slurm is a specialized operating system used to manage multiple users with access to the HPC3 system of compute nodes. Slurm may be used to query how jobs are running on HPC3.

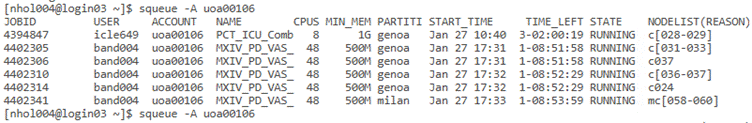

Use the squeue command to see the status of running jobs e.g

squeue -A uoa00106

The -A uoa00106 option shows all jobs associated with members of our NeSI group (uoa00106)

The -u nesiname option shows the jobs for a specific user e.g. my nesiname is nhol004.

squeue -u nhol004

The CPUS column in the output is currently two times the number of CPUs requested when using WFN. This is because most of the actual CPUs can perform a second set of tasks using hyperthreading. There are slurm commands to enable hyperthreading but by default hyperthreading is not enabled.

Keeping Track of HPC Job Files

Use the ondemand page dashboard to open a session app. I prefer to use the VS Code (“Visual Studio”) interactive app. Jupyter Lab offers similar functionality but some features such as refreshing the file list do not seem to work. See the section below Ondemand Dashboard Apps for more information. The following images show how to use the VS Code app to keep track of HPC job files.

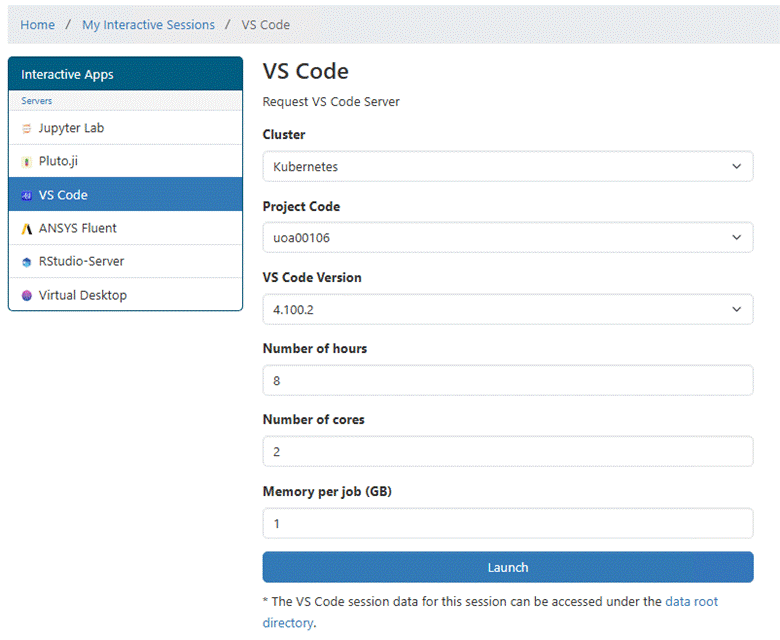

Clicking on VS Code will open the following window. Currently the maximum number of hours is 8. That means you will need to open a new VS Code app session after 8 hours.:

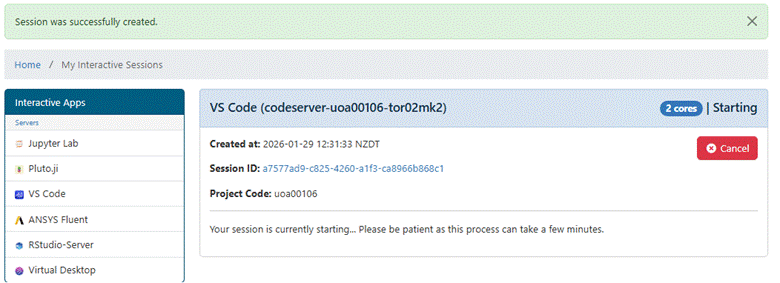

After launching the session app you will see a window indicating the app is starting. This may take 10-30 seconds.

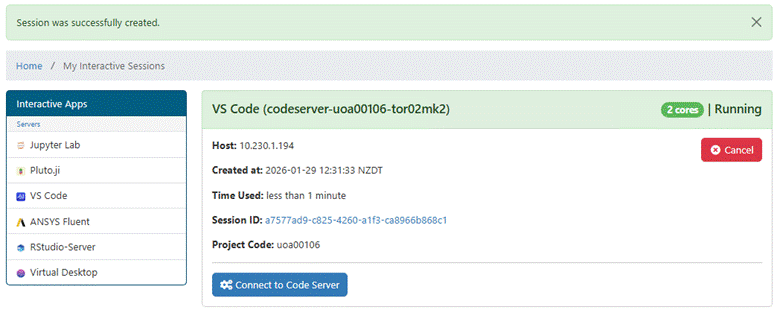

Once started, the window shows the app is running.

Use the Connect button to open the app. When the VS Code app opens the upper right corner of the opening page looks like this:

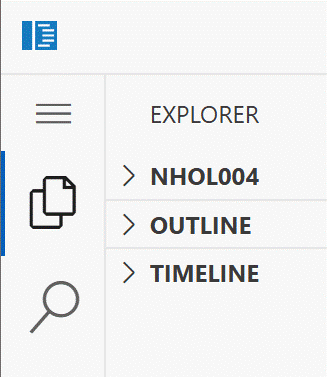

You may need to click on your user name then the explorer symbol (overlapping pages) to open the user home page.

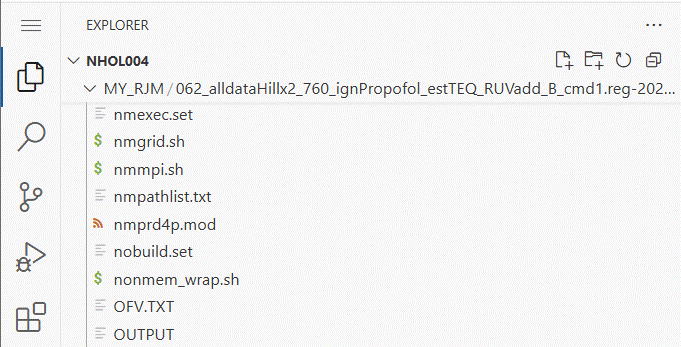

Scroll down to find a folder you are interested in then click to open e.g. use MY_RJM to see the folders associated with recent NONMEM runs. If the job has completed successfully the folder contains an output.zip file containing results that are transferred to WFN. If the job is still running then click on the job folder name and look for the OUTPUT file.

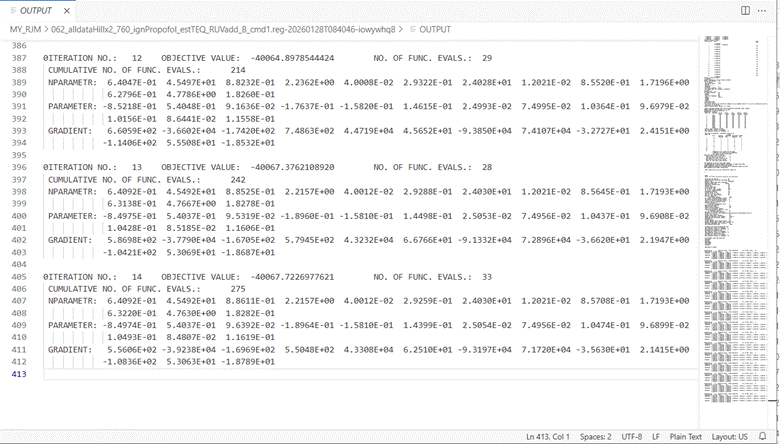

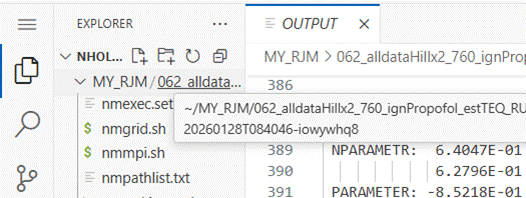

Click on OUTPUT and a window should open showing the OUTPUT file contents.

Click on the OUTPUT window and scroll down to the bottom to find the results of the latest iteration. On the right hand side of the window is a map of the lines in the file which can be useful to find a section that interests you.

To refresh the EXPLORER window hover your mouse over the file folder the click on revolving arrow symbol. This refreshes the folder contents list and should also refresh the OUTPUT page.

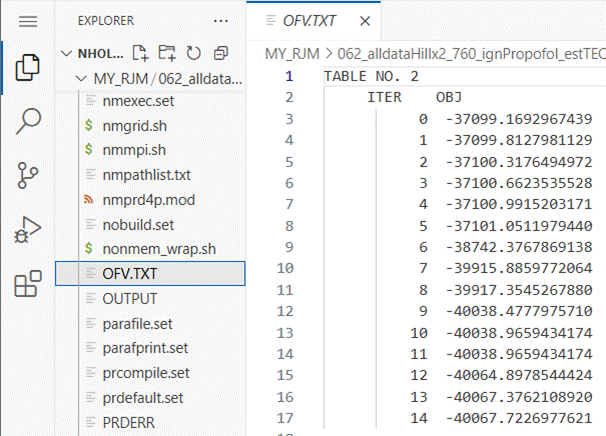

If you click on the OFV.TXT file name you can see a list of objective function values (OFV).

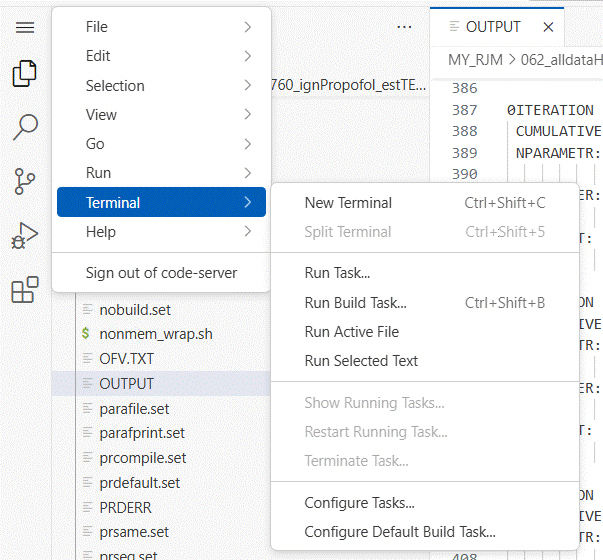

When jobs have finished you should consider deleting the run folder to release storage resources. You can do this by opening a terminal window by clicking on the menu icon (3 bars) at the upper right of the app window.

The terminal window opens in your NeSI home folder. You can list the contents with the ls -l command typed into the terminal window.

You will need to change directory to MY_RJM by typing the cd MY_RJM command followed by ls-l to list the folders and files:

You can delete a folder and its contents with a command such as:

rm -R 062*

Folders need to be removed recursively (rm -R) But you should be cautious using the “*” wildcard because it will delete all folders and files which start with “062”. This wildcard is useful if you have 100 similar folders created by a bootstrap run with 100 replicates.

To delete just one folder it is best to specify the full directory name. This can be done by double clicking on the folder name which copies the name into the clipboard then type “rm -R “ followed by a right-click on the mouse which should paste the full name after the partially typed command. Check that it looks correct then press “Enter” to remove the folder.

It is not essential to delete folders but it does help you to identify folders you are interested in and is “good citizenship” not to consume resources once you have finished with them. Eventually the folder will be deleted by NeSI based on their automated deletion policy.

Once you have finished with the app you should return to the ondemand dashboard session page, cancel the app then delete the saved copy of the app in order release computing and storage resources.

Advanced RJM Tools Options

The environment variable rjm_dir may be set to point to a different directory for running jobs on HPC3 e.g.

set rjmdir=/projects/myProject/myName/rjm_PK

You should change myProject to your project and myName to your nesiname. This can be useful if you are running batches of jobs that you want to be able to identify more easily.

Using WFN with NeSI

1. Open a WFN window. You should now be able to use NeSI by calling nmgog:

nmgog theopd

2. The nmgog command will start the job on HPC3. When it finishes you should see the usual results that are displayed by WFN.

3. The nmgog, nmbsg, nmbsig, nmrtg and nmgosimg commands work similarly to nmgo,nmbs, nmbsi, nmrt and nmgosim but submit NONMEM runs to the cluster. The number of cpus is set by default to 4 and walltime to 4:0:0 (4 hours) for cluster jobs. These defaults can be changed by setting the cpus and walltime environment variables before the WFN commands.

set CPUS=24

Note that if you ask for a lot of CPUs your job may be put into a wait queue until there are enough CPUs available.

The WALLTIME variable is specified in the format hh:mm:ss. It controls the total run time for your job. You might estimate this from a run on a typical Windows machine and divide by 2 (it should be at least 2 times faster with 4 CPUs).

The default time for checking that the job is finished is 10 seconds. You may set the BATCHWAIT variable to a more suitable time if you have long jobs.

Request up to 24 hours for job to run

set WALLTIME=24:00:00

Check every 60 seconds to see if jobs have finished

set BATCHWAIT=60

4. The default memory requested is 500 gigabytes. If a run fails then check stderr.txt in the WFN results folder. This may indicate not enough memory. Try increasing the memory request in steps of 500 megabytes using the NMMEM variable. An error such as “compiler failure” also suggests increasing the memory.

The memory request can be changed with the NMMEM environment variable. Note that memory size must be specified as an integer with M or G suffix.

Request 500 megabytes of memory:

set NMMEM=500M

Request 2 gigabytes of memory:

set NMMEM=2G

Using nfmenv.bat

The Windows environment options such as CPUS and NMMEM may need to be tailored to specific NONMEM projects. The nmenv.bat script is useful for specifying these environment variables when opening a WFN window. The nmenv.bat should be placed in the directory where the WFN window opens. This is typically the NONMEM directory used to store NM-TRAN control streams for the project. The title command in nmenv.bat is useful for showing key environment variables.

@echo off

rem nmenv.bat

set args7=

set CPUS=20

set NMMEM=2G

title Project CPUS=%CPUS%

The args7 variable is by default set to -prdefault in order to use pre-compiled PREDPP code. When the NM-TRAN specifies changes to SIZES then the args7 variable should be unset. It is often useful to put this in nmenv.bat. Note that if you wish to run nmgo at the command line it is important to unset the CPUS variable. The CPUS variable should only be set when using WFN commands that use HPC3.

Slurm Commands

1. Memory usage for jobs on a particular date can be obtained using this command at the login node command prompt (use Mobaxterm) with a suitable user id and date:

sacct -u nesiname -S 2018-12-10

or if you have a jobid (eg. From using squeue while the job is running) this will show details of a running or completed job. The completed job stats show the maximum memory usage (maxRSS). This may be useful in estimating the requested memory size (see nmmem).

sacct -j jobid

2. Job status can be obtained using this command at the login node command prompt with a suitable user id:

squeue -u nesiname

3. The job status of all users in the Auckland Pharmacometrics Group project can be displayed using:

squeue -A uoa00106

4. The squeue command shows job numbers which can be used with sview. The sview command can be used to find information about each job but is rather clumsy to use when trying to find a particular job.

sview

5. From mid-February 2021 WFN maintains a log of jobs run using NeSI. WFN includes a smrg command that retrieves job statistics derived from the job numbers and merges the output of nm_seff and sacct to show CPU, memory and walltime efficiency.

smrg

The results of smrg are collected into a file called smrg_stat.csv. This can be viewed using Excel and specific rows selected using the Excel data filter. Each set of job statistics starts with the date and time of the run and the job ID (slurm job number).

This example shows 3 rows selected with Date containing ’04-06’. The results for each job include the user name, the state of the job when it finished, and 4 sections with statistics describing efficiency of requested CPU, memory and walltime.

The CPU section shows the number of CPUs requested and the CPU efficiency. When CPUeff% is less than 2% it typically means the job finished with an error detected by NM-TRAN or NONMEM. Models similar to Job number 18921115 which ran successfully had a CPUeff% of 99%. For reasons currently unexplained jobs running with NM7.5.0 report a State of ‘FAILED’ even though the NONMEM job completed normally. The theopd test job ran successfully but with low CPU efficiency because each individual has only a few observations.

Date	Job ID	User	State	CPUS	CPUeff%
2021-04-06_17.51.03.219209	18921115	jmor616	COMPLETED	24	1.25
2021-04-06_08.22.38.430877	18924529	nhol004	FAILED	4	16.67
2021-04-06_08.44.33.746999	18925119	nhol004	COMPLETED	1	29.58

The memory section shows the requested memory (ReqMem). By default this is 250Mc for NONMEM jobs. The ‘c’ suffix indicates this is memory requested per core (similar to per CPU). The user can request more memory by changing the NMMEM environment variable which is also shown in this section. The main memory demand for NONMEM is during job compilation and the memory required is similar for both small and large NONMEM models. The Memory values shows the memory used by all the parallel tasks. This increases in proportion to the number of CPUs. The MaxRSS statistic is hard to interpret. One definition is "Maximum individual resident set size out of the group of resident set sizes associated with all tasks in job." When CPUeff% is high it is usually several times bigger than Memory. It is not clear how it can be smaller than Memory. The MEMeff% statistic is somehow related to ReqMem and Memory or MaxRSS but it is not clear how.

Date	Job ID	ReqMem	NMMEM	Memory	MaxRSS	MEMeff%
2021-04-06_17.51.03.219209	18921115	250Mc	250M	11.72GB	24K	0.16
2021-04-06_08.22.38.430877	18924529	250Mc	250M	1.95GB	759K	0.14
2021-04-06_08.44.33.746999	18925119	20Mc	20M	40.00MB	94K	15.94

The walltime section shows the Elapsed time the job ran (d-hh:mm:ss), the TotalCPU time which is approximately Elapsed time multiplied by the number of CPUs, and Walltime (the clock time that elapses from starting to finishing the job). The WallEff% is the percent of Walltime taken by Elapsed.

Date	Job ID	Elapsed	TotalCPU	Walltime	WallEff%
2021-04-06_17.51.03.219209	18921115	0:00:10	00:00.0	1-00:00:00	0.01
2021-04-06_08.22.38.430877	18924529	0:00:03	00:07.1	4:00:00	0.1
2021-04-06_08.44.33.746999	18925119	0:03:33	0:00:00	0:05:00	71

The final section indicates the NONMEM version (NMVER) and the job name. For NONMEM jobs this will be the same as the model file name with a suffix indicating the Windows shell command counter for that job (‘_cmd1’). WFN cluster commands that run multiple jobs in parallel such as nmbsg are filtered to show only the first shell command.

Date	Job ID	NMVER	Name
2021-04-06_17.51.03.219209	18921115	744	sevo_fixPKPD_popM_popP_popR_fixed_fixE0_d_cmd1
2021-04-06_08.22.38.430877	18924529	750	theopdg_cmd1
2021-04-06_08.44.33.746999	18925119	750	smrg_cmd1

The smrg command may be run at any time. It takes just under 4 minutes to complete with a 2 month collection of jobs. If someone else is running smrg you will get a warning message and the previous most recent version of the smrg_stat.csv file will be copied to the directory you used to call smrg.

6. Other commands to find out about jobs are described here:

https://support.NeSI.org.nz/hc/en-gb/articles/360000205215-Useful-Slurm-Commands

Ondemand Dashboard Apps

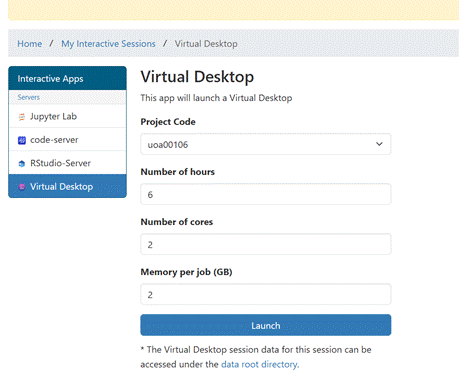

The ondemand dashboard provides several apps that might be useful. These apps require the user to configure some settings for the app. Once launched the app takes a minute or so to set itself up. Once it is running you can then click on Launch to get it started. You can use the dashboard to cancel a running app so that it no longer consumes HPC3 resources.

A screenshot of a computer

AI-generated content may be incorrect.

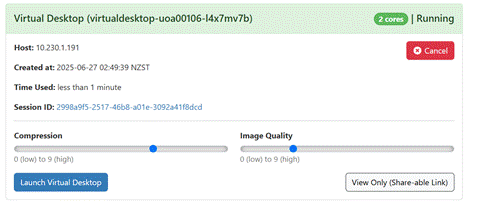

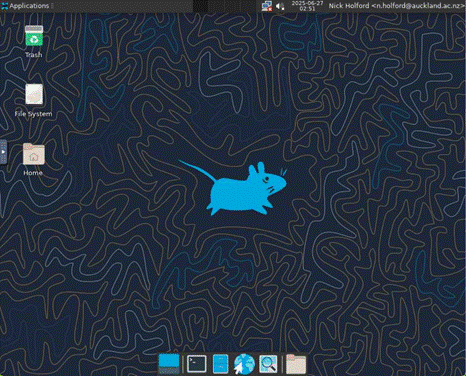

The Virtual Desktop looks like this:

A computer screen shot of a mouse

AI-generated content may be incorrect.

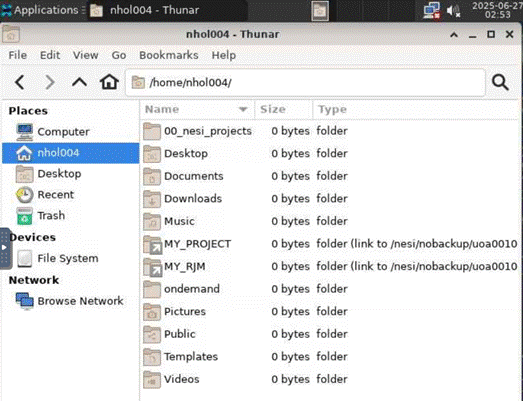

The Virtual Desktop offers a File System view. By clicking on your NeSIname you can see directories and files in your home directory. This is an alternative to using the Files view offered in the ondemand dashboard.

It also offers a terminal view.

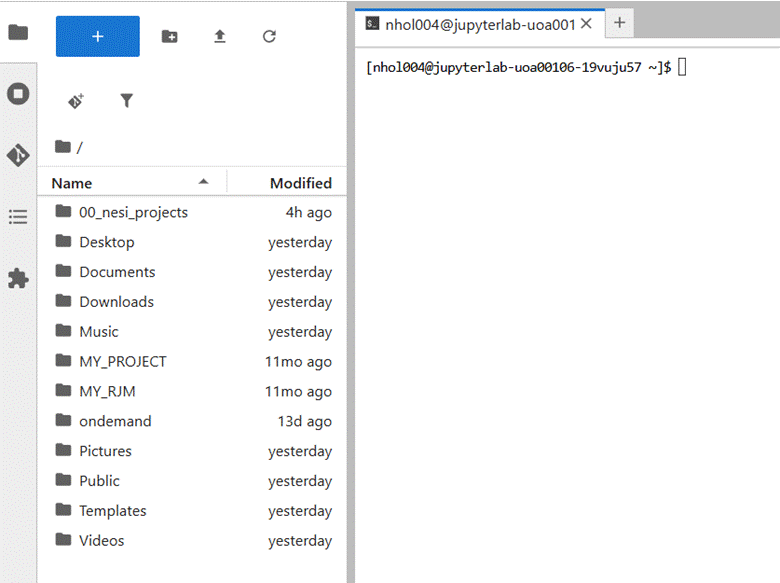

The Jupyter lab app offers a combined File system and terminal view.

It is a matter of personal preference which app you use to manage your files and give commands to the operating system.

How To Retrieve Results From A Failed Job

Jobs may fail to retrieve results if the connection used to submit the job has stopped or if the job times out on HPC3.

Connection Used To Submit The Job Has Stopped

After restarting the connection, if you can still see the job results folder (model name with a _cmd1.reg suffix) there is a file in the job results folder containing information about the job that failed to return results. If you run nmgog again with exactly the same model it may be possible to retrieve the results and nmgog should finish normally by showing you the usual summary of the NONMEM job and parameter estimates.

Job Times Out On HPC3.

If the job times out then it is possible to download to download files from HPC3 and use them to extract the latest parameter estimates. This requires several steps which are shown here using the model “mymodel” submitted with a control stream “mymodel.ctl”:

1. Open a NeSI app session using VS Code or Jupyter Lab

2. Open the mymodel* folder. The folder name will start with the model name followed by a string showing the time the job was submitted which is represented by the “*”.

3. Find the files INTER, OUTPUT and mymodel_cmd1.lst

4. Right click on each file in turn and download the file to the mymodel_cmd1.reg run folder on your computer.

5. Use the Windows File Explorer to locate the mymodel.ctl file and the run folder mymodel_cmd1.reg.

6. Look in mymodel_cmd1.reg and confirm that the INTER, OUTPUT and mymodel_cmd1.lst files are in that folder. Remove any extension such as “.txt” that may have been added to the INTER and OUTPUT files.

7. Return to the folder containing mymodel_cmd1.reg.

8. Rename mymodel.ctl to mymodel_cmd1.ctl

9. Run the WFN nmctl command with the “i” option. Using the “i" option is very important. If you forget then the nmctl command will “hang”. Use ctrl-C to stop the nmctl command then try again with the “i" option.

nmctl mymodel_cmd1 i

10. Use the WFN nmrunmv command to rename the mymodel_cmd1 control stream and folder

nmrunmv mymodel_cmd1 mymodel

11. The mymodel.ctl file should now have the parameter initial estimates updated with the latest results from the NeSI run.
